Reindeer!


Paul Hamler came by and showed me these plans for a reindeer.

deer.gif (6142 bytes) "Copy the side profile on a block of wood and cut it out with a jig saw" he said. "Then rotate the piece of wood 90 degrees and copy the front profile and cut it out."

"Wood? Jig saw? What's he talking about?"  I thought to myself.  "This is a machine shop."

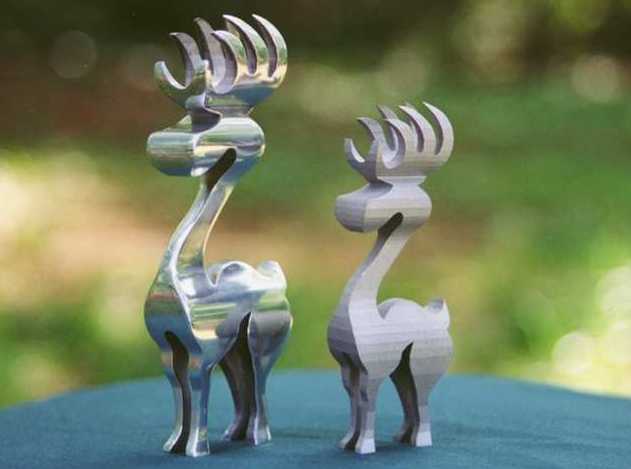

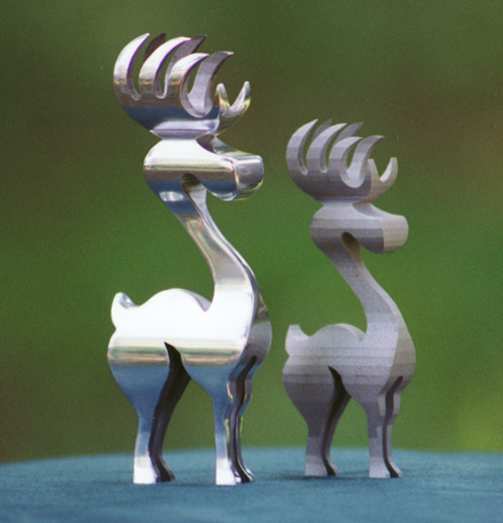

I scanned the drawing and imported it into AutoCad. Then I created a spline to match the profile and sent it into MasterCam to create the tool path for my Wire EDM to follow.  Out came an aluminum Reindeer!
